Optifoam is a lightweight acoustic underlay from Pavigym Foams, developed to reduce impact noise and vibration beneath strength, free-weight and functional training flooring. Available in two densities, its adhesive-free format allows the acoustic response to be adapted to different project requirements while keeping the flooring build-up simple and efficient.
Two densities,
one adaptable acoustic solution

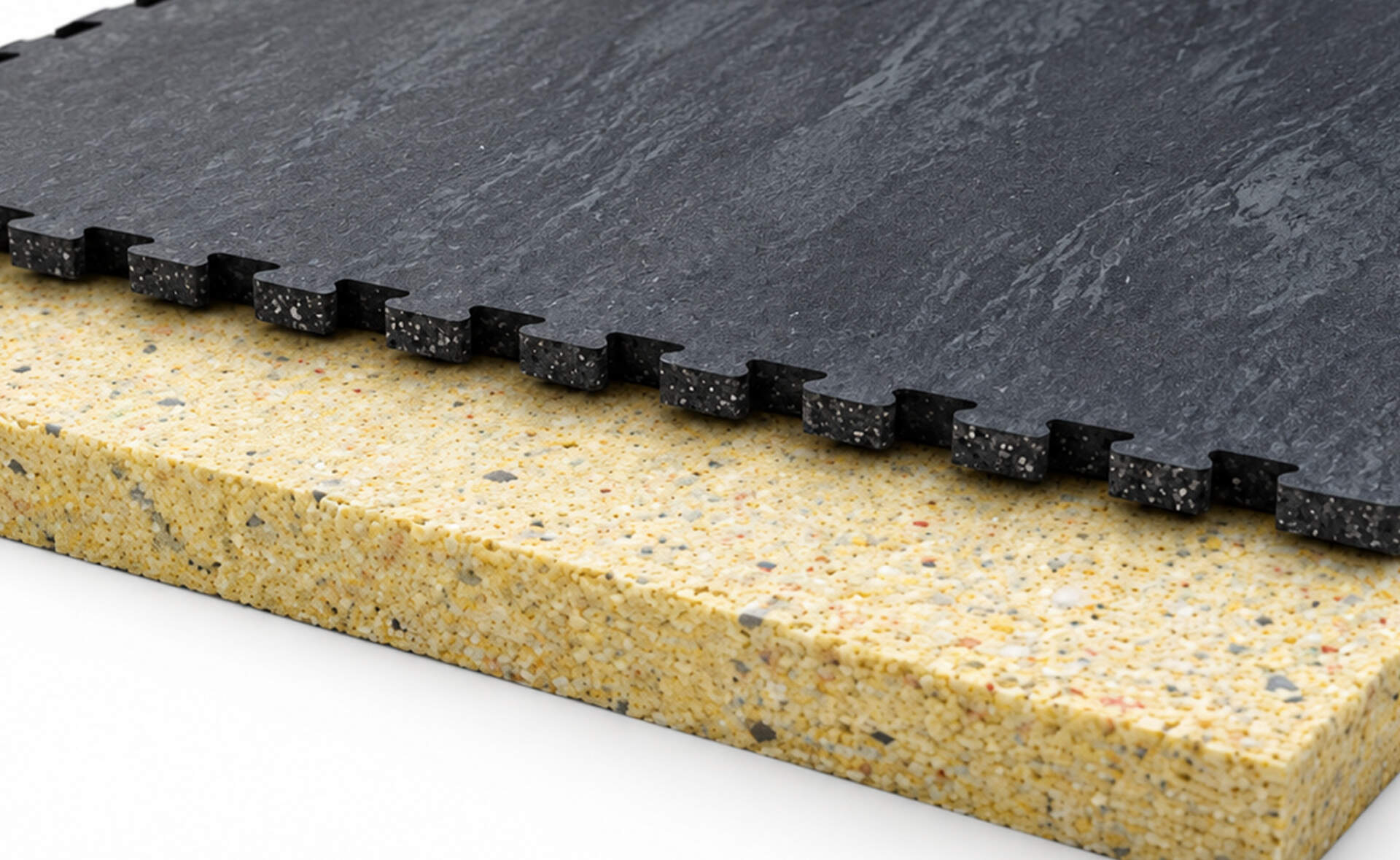

Optifoam is available in two 30 mm versions — 180 and 250 kg/m³ — allowing the acoustic underlay to be matched to the requirements of each project. Both share the same 100 × 200 cm format and adhesive-free installation; the difference lies in density, weight and compressive response.
Lighter acoustic support
With a density of 180 kg/m³, Optifoam 180 provides acoustic and impact support while adding less weight to the flooring build-up. Its lower-density structure makes it a practical option where weight efficiency and acoustic improvement are key project considerations.
Higher-density acoustic support
With a density of 250 kg/m³, Optifoam 250 provides a firmer response and greater resistance to compression, making it suitable for projects where higher load support and acoustic insulation are required.
Why Optifoam
makes a difference
Engineered recycled PU foam
Made from recycled PU foam, Optifoam provides a lightweight acoustic layer designed to help reduce impact noise and vibration beneath demanding training floors. Its material structure combines cushioning and acoustic support in a practical 30 mm underlay.
Low added weight for demanding projects
Optifoam adds acoustic and impact support while introducing little additional weight to the building structure — an important advantage in large-scale projects or facilities where structural load needs to be carefully managed.
Adhesive-free, low-maintenance installation
Optifoam is loose laid without adhesive, simplifying installation beneath the flooring system and avoiding unnecessary fixing layers. Its durable foam structure also requires no specific maintenance once installed.
Pavigym Foams
Optifoam is part of Pavigym Foams, our engineered family of foam-based solutions developed to improve comfort, impact management and acoustic performance across different fitness environments.
Engineered foam solutions for different needs
Pavigym Foams brings together different foam technologies and formats, from direct-contact training mats to PU and microcellular acoustic layers, each selected according to the function required within the fitness space.
Comfort, acoustic and impact support
Carefully selected foam materials add cushioning where greater comfort is required while helping reduce impact transmission, vibration and noise in more technically demanding flooring systems.
Compatible with different flooring systems
Designed to complement Pavigym flooring, selected Foam solutions can also be integrated beneath other compatible floor finishes when project requirements call for it, extending acoustic and impact support to a wider range of flooring build-ups.
Key Features
| Thickness | Dimensions | Density | Material | Weight | Warranty | |
|---|---|---|---|---|---|---|
| Optifoam 180 | 30 mm | 200 x 100 cm | 180kg/m3 | Recycled PU foam | 15 kg/m2 | 2 years |
| Optifoam 250 | 30 mm | 200 x 100 cm | 250kg/m3 | Recycled PU foam | 2,5 kg/m2 | 2 years |

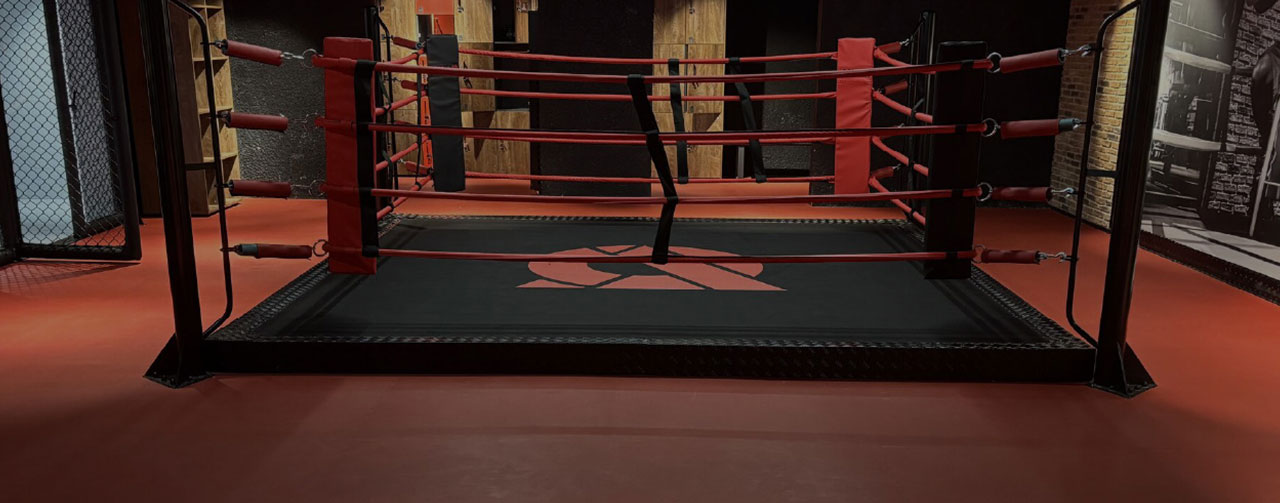

Reducing noise transmission at On Air
At On Air, noise control was essential to protect the training experience inside the gym while limiting disturbance to neighbouring spaces. Optifoam helped significantly reduce noise and vibration transmission, with a lightweight, adhesive-free installation that simplified the acoustic upgrade.
Innovation with responsibility
Fitness Focus
Over 60 years focused on fitness flooring. Pavigym designs practical solutions for real gyms, with specific systems for each zone, activity and demand level, helping fitness spaces perform from the ground up.
Quality &
Innovation
Material knowledge, production know-how and smart systems applied with one purpose: flooring that performs in real gyms. Listening to the industry, Pavigym turns real needs into simple innovations that solve real daily problems.
Best ROI
Flooring designed to deliver value beyond installation, with durability, easier maintenance and formats that make better use of every square metre. Pavigym helps protect the investment and support performance year after year.
Hygiene and
Safety
Surfaces built for cleanliness and safety by design, so hygiene and protection come as standard. With antibacterial performance and easy maintenance, Pavigym helps minimise bacterial growth and create fresher, safer gym spaces.
360º Support
Guidance at every stage of the flooring project, from design and product selection to installation, maintenance and aftercare. Pavigym helps simplify decisions, reduce risks and ensure reliable performance over time.
Brands that TRUST Pavigym
Recycled foam technology, adaptable acoustic support, backed by Pavigym expertise.
Tell us about the activity, flooring system and acoustic requirements of your project. Our team will help you select the right Optifoam configuration.
